At Micro-Measurements, we provide high-quality strain gage (gauge) instruments designed to deliver precise and reliable data for stress analysis across the automotive, aerospace, civil, and industrial sectors. Our advanced data acquisition systems, signal conditioners, and StrainSmart software empower engineers and researchers to perform both static and dynamic testing with unmatched accuracy. With our solutions, you can efficiently collect, process, and analyze strain data, ensuring optimal performance and safety in critical applications.
Why Choose Micro-Measurements for Strain Gage Instrumentation?
For over fifty years, our strain gage (gauge) instrumentation is tailored to meet the demanding needs of stress analysis professionals. We understand the importance of accurate data in making informed design and maintenance decisions. That’s why our products are engineered to offer superior performance and flexibility, helping you achieve precise results in your strain measurement projects.
Key Features of Micro-Measurements Strain Gage Instruments:
- Accurate Data Acquisition: Our instruments provide high-resolution data collection, capturing even the smallest strain variations for comprehensive analysis.
- Advanced Signal Conditioning: Our Signal Conditioners amplify and filter strain signals, providing clean, reliable data for precise measurement.
- StrainSmart Software: Our intuitive StrainSmart software simplifies data collection, visualization, and analysis, offering real-time insights and easy integration with other systems.
- Support for Wheatstone Bridge Configurations: Built-in support for quarter, half, and full Wheatstone bridge strain gage (gauge) configurations, eliminating the need for external bridge completion.
- Durable and Reliable: Designed for long-term use in harsh environments, ensuring consistent performance across a wide range of industrial applications.
Industry Applications for Strain Gage Instrumentation
Aerospace
In the aerospace industry, where precision is paramount, our strain gage (gauge) instrumentation helps engineers monitor stress in critical components like wings, fuselage, and landing gear. Our data acquisition systems and StrainSmart software provide the detailed insights needed to ensure safety and optimize design during testing and operational use.
Automotive
Automotive manufacturers rely on our signal conditioners and strain gage (gauge) data systems for testing vehicle components under static and dynamic loads. By providing accurate insight on how components respond to stress and strain, our products enable the design of safer, more efficient vehicles.
Civil Engineering
In civil engineering, our portable strain gage (gauge) instruments are used to monitor the structural integrity of bridges, buildings, and other infrastructure. By measuring strain during construction and throughout the lifecycle of a structure, engineers can ensure that it remains safe and resilient under varying loads.
Industrial Applications
Our data acquisition systems and signal conditioners are also crucial in industrial settings, where monitoring machinery performance is key. From analyzing the effects of operational loads to ensuring the durability of manufacturing equipment, our instruments provide the precision and reliability required for critical industrial processes.
Our range of products includes:
High-speed data loggers • Single-channel devices • Portable indicators • Multi-channel data acquisitions systems • High-bandwidth signal conditioners • Signal conditioning amplifiers • Embedded analog-to-digital convertors • Inputs for other commonly used sensors, including load cells, displacement transducers, thermocouples, and accelerometers.
For help comparing System 7100, 8000, and 9000, see our Selection Guide for Data Acquisition Instruments
For help comparing P3, D4, and MultiDAQ, see our Selection Guide for Strain Measurement Instruments

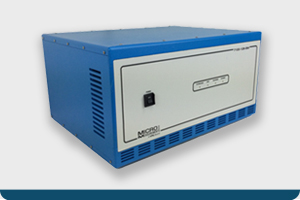

System 7100 Data Acquisition System
This high-performance data acquisition system employs a 24-bit analog-to-digital converter in each sensor channel. Scan rates of up to 2000 updates per second are available for simultaneous reading of all sensor inputs.

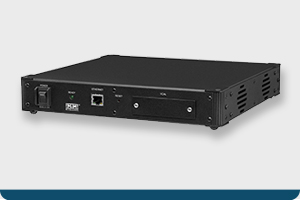

System 8000 StrainSmart® Data Acquisition System
This compact, flexible system offers eight programmable channels for strain gages, thermocouples, and voltages. Perfect for small static and quasi-dynamic tests; expandable to 128 channels.

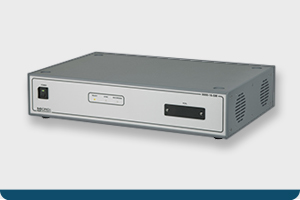

System 9000 StrainSmart® Data Acquisition System
This high-speed system for dynamic and transient recording is expandable to 48 channels. Includes twelve strain gage inputs and four customizable inputs per unit, including thermocouples and accelerometers.

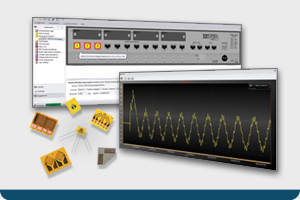

StrainSmart® Data Acquisition Software
This software works seamlessly with our StrainSmart data systems. Quick, easy setup enables highly accurate capture of engineering-unit data.

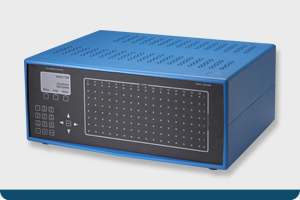

System 7000 StrainSmart® Data Acquisition System
This data acquisition system, ideal for medium to high channel-count tests, has high density enclosures and is expandable from eight to hundreds of channels. Accepts strain gage, thermocouple, voltage and LVDT inputs.

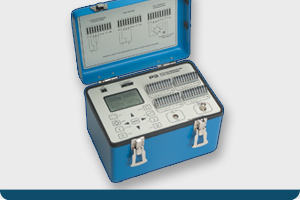

P3 Strain Indicator and Recorder
This portable, battery-powered, four-channel unit enables stand-alone or USB-connected display and recording. Integral bridge completion and shunt calibration. Software included.

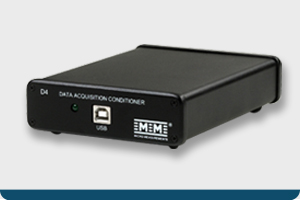

D4 Data Acquisition Conditioner
This ultra-compact four-channel USB-powered device for strain gages and transducers includes software supporting up to six devices. Integral bridge completion and shunt calibration.

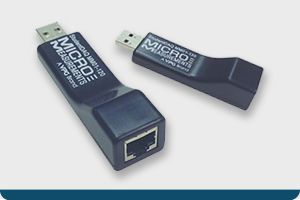

StudentDAQ Data Acquisition Device
This low-cost, easy-to-use single-channel USB device works with strain gages and transducers. Free software download.

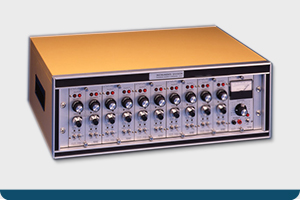

2100 System - Signal Conditioning Amplifier
This strain gage conditioning amplifier has integral bridge completion, adjustable excitation, shunt calibration, and manual balance. BNC voltage output; up to 50 kHz bandwidth.

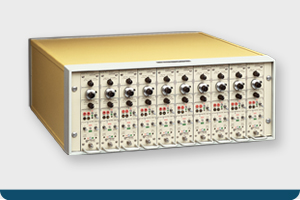

2200 System - Signal Conditioning Amplifier
For use in harsh noise environments, this amplifier offers strain gage bridge completion, excitation and shunt calibration, wide gain and auto balance, selectable filters, and 100 kHz full-gain bandwidth.

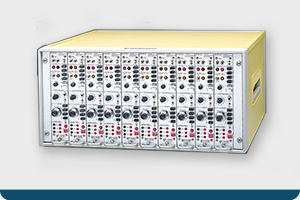

2300 System - Signal Conditioning Amplifier
A field-proven, robust amplifier with up to 300 kHz bandwidth. Includes gage bridge completion, switchable excitation, shunt calibration, wide gain, and auto bridge balance.

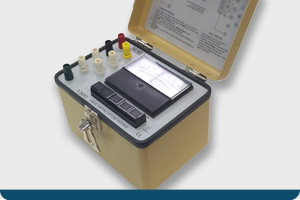

1300 Gage Installation Tester
The 1300 Gage Installation Tester is used to verify the quality of an installed strain gage (strain gauge), as well as the complete gage installation, including leadwires.
System 7100 Data Acquisition System

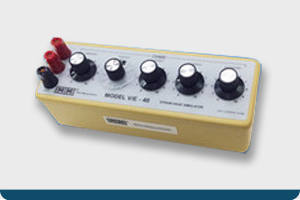

This high-precision decade resistor simulates strain gages and RTDs. 30 to 1111.1Ω in 0.01Ω increments. Can be used for calibration and troubleshooting; offers 0.02% accuracy.

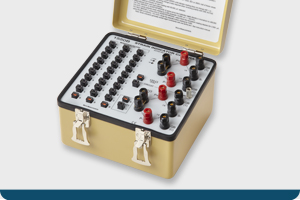

1550B Strain Indicator Calibrator
This NIST-traceable Wheatstone bridge calibrator offers 0.025% accuracy. Quarter, half, and full-bridge, 120 and 350 ohms. Push buttons for +/- 99,000 in 100 microstrain increments.

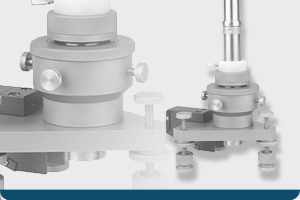

RS-200 Milling Guide
Precision fixture to drill holes for residual stress measurements to ASTM E837 using special strain gages. Microscope, high-speed turbine and micrometer for hole depth control.

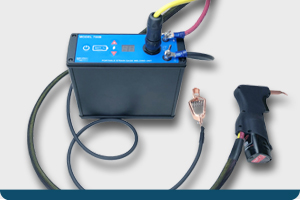

700B Welder
The Micro-Measurements Model 700 Welder provides more capability and flexibility in a smaller, more portable package.
Take Your Strain Measurements to the Next Level with Micro-Measurements
Ready to achieve more precise and reliable strain measurements? Contact our sales team today to discuss how Micro-Measurements’ strain gage (gauge) instrumentation can meet your specific needs.
Request a demo or visit our product catalog to learn more about our full range of solutions, including data acquisition systems, signal conditioners, and software.
