CEA Series Linear Strain Gages |
|
|
|
|
|
|
|
|
|
|
|
|
|||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
[in/mm] | [in/mm] | [in/mm] | [in/mm] | ||||||||||||||
Configuration
|
Pattern | Res. [Ω] |
Gage Length |
Gage Width |
Matrix Length |
Matrix Width |
Standard STC |
Temperature Range |
Options | ||||||||
Linear Strain Gage | 015UWA | 120 | 0.015 [0.38] | 0.02 [0.51] | 0.24 [6.1] | 0.18 [4.6] |
00, 03, 05, 06, 09, 13 |
–100° to +350°F (–75° to +175°C) |
P2, SP11 | ||||||||
032UWA | 120 , 350 | 0.032 [0.81] | 0.06 [1.52] | 0.27 [6.9] | 0.19 [4.8] | ||||||||||||
062UWA | 120 , 350 , 1000 | 0.062 [1.57] | 0.12 [3.05] | 0.31 [7.9] | 0.19 [4.8] | ||||||||||||
125UNA | 120 , 350 | 0.125 [3.18] | 0.1 [2.54] | 0.38 [9.7] | 0.19 [4.8] | ||||||||||||
125UWA | 120 , 350 | 0.125 [3.18] | 0.18 [4.57] | 0.42 [10.7] | 0.27 [6.9] | ||||||||||||
250UNA | 120 , 350 , 1000 | 0.25 [6.35] | 0.12 [3.05] | 0.52 [13.2] | 0.22 [5.6] | ||||||||||||
250UWA | 120 , 350 | 0.25 [6.35] | 0.18 [4.57] | 0.55 [14.0] | 0.27 [6.9] | ||||||||||||
375UWA | 120 , 350 | 0.375 [9.53] | 0.18 [4.57] | 0.67 [17.0] | 0.27 [6.9] | ||||||||||||
500UWA | 120 , 350 | 0.5 [12.70] | 0.18 [4.57] | 0.8 [20.3] | 0.27 [6.9] | ||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|||||||
Linear Strain Gage - Tabs on one side | 062UBA | 350 | 0.062 [1.57] | 0.12 [3.05] | 0.21 [5.3] | 0.34 [8.6] | |||||||||||
125UBA | 350 | 0.125 [3.18] | 0.16 [4.06] | 0.34 [8.6] | 0.39 [9.9] | ||||||||||||
250UBA | 350 | 0.25 [6.35] | 0.16 [4.06] | 0.42 [10.7] | 0.42 [10.7] | ||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|||||||
Temperature Range | |||||||||||||||||
Typically used with: | M-Bond 200 Kit | Room temperature instant curing strain gage adhesive | –25° to +150°F (–30° to + 65°C) | ||||||||||||||
M-Bond AE-10 Kit | Two-component, 100%-solids epoxy system for general purpose strain gages Room temperature cure, highly resistant to moisture and most chemicals |
–320° to +400°F (–195° to +204°C) | |||||||||||||||
M-Bond 600 Kit | Two-component, solvent-thinned, epoxy-phenolic strain gage adhesive for high-performance | –452° to +500°F (–268° to +260°C) | |||||||||||||||
C4A Series Linear Strain Gages |
|||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
[in/mm] | [in/mm] | [in/mm] | [in/mm] | ||||||||||||||
Configuration | Pattern | Res. [Ω] |
Gage Length |
Gage Width |
Matrix Length |
Matrix Width |
Standard STC | Temperature Range | Options | ||||||||
Gages With Pre-attached Cables | 060SL | 120 , 350 | 0.06 [1.52] | 0.1 [2.54] | 0.24 [6.0] | 0.19 [4.9] |
06, 09, 13 |
–60° to +180°F (–50° to +80°C) |
23P, 39P |
||||||||
125SL | 120 , 350 | 0.125 [3.20] | 0.1 [2.54] | 0.28 [7.1] | 0.19 [4.9] | ||||||||||||
235SL | 120 , 350 | 0.235 [5.97] | 0.1 [2.54] | 0.37 [9.4] | 0.19 [4.9] | ||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|||||||
Temperature Range | |||||||||||||||||
Typically used with: | M-Bond 200 Kit | Room temperature instant curing strain gage adhesive | –25° to +150°F (–30° to + 65°C) | ||||||||||||||
M-Bond AE-10 Kit | Two-component, 100%-solids epoxy system for general purpose strain gages Room temperature cure, highly resistant to moisture and most chemicals |
–320° to +400°F (–195° to +204°C) | |||||||||||||||
Two-component, 100%-solids epoxy system for general purpose strain gages, Highly resistant to moisture and most chemicals, Cryogenic applications require very thin gluelines |
–320° to +200°F (–195° to +95°C) | ||||||||||||||||
C5K Series Linear Strain Gages |
|||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
[in/mm] | [in/mm] | [in/mm] | [in/mm] | ||||||||||||||
Configuration | Pattern | Res. [Ω] |
Gage Length |
Gage Width |
Matrix Length |
Matrix Width |
Standard STC | Temperature Range | Options | ||||||||
Gages With Pre-attached Cables | S5145 | 350 | 0.030 [0.76] | 0.063 [1.60] | 0.12 [3.1] | 0.10 [2.6] |
03, 05, 06, 09, 13 |
–100° to +400°F (–75° to +205°C) |
23P, 39P, 2R |
||||||||
NEW! | 050LK | 5000 | 0.050 [1.27] | 0.073 [1.85] | 0.17 [4.4] | 0.14 [3.6] | |||||||||||
NEW! | 125LK | 350, 5000 | 0.125 [3.20] | 0.065 [1.65] | 0.25 [6.3] | 0.14 [3.6] | |||||||||||
400LK | 5000 | 0.394 [10.00] | 0.102 [2.59] | 0.55 [14.0] | 0.16 [4.0] | ||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Temperature Range | |||||||||||||||||
Typically used with: | M-Bond 200 Kit | Room temperature instant curing strain gage adhesive | –25° to +150°F (–30° to + 65°C) | ||||||||||||||
M-Bond AE-10 Kit | Two-component, 100%-solids epoxy system for general purpose strain gages Room temperature cure, highly resistant to moisture and most chemicals |
–320° to +400°F (–195° to +204°C) | |||||||||||||||
M-Bond 600 Kit | Two-component, solvent-thinned, epoxy-phenolic strain gage adhesive for high-performance | –452° to +500°F (–268° to +260°C) | |||||||||||||||
WK Series Linear Strain Gages |
|||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
[in/mm] | [in/mm] | [in/mm] | [in/mm] | ||||||||||||||
Configuration | Pattern | Res. [Ω] |
Gage Length |
Gage Width |
Matrix Length |
Matrix Width |
Standard STC | Temperature Range | Options | ||||||||
Linear Strain Gage | 031CF | 120 , 350 | 0.031 [0.79] | 0.062 [1.57] | 0.19 [4.8] | 0.14 [3.6] |
00, 03, 05, 06, 09, 13 |
–452° to +550°F (–269° to +290°C) |
W, SP11 |
||||||||
031DE | 350 | 0.031 [0.79] | 0.032 [0.81] | 0.27 [6.9] | 0.12 [3.0] | ||||||||||||
060CD | 1000 | 0.06 [1.52] | 0.1 [2.54] | 0.28 [7.1] | 0.2 [5.1] | ||||||||||||
062AP | 350 | 0.062 [1.57] | 0.062 [1.57] | 0.26 [6.6] | 0.16 [4.1] | ||||||||||||
062AQ | 5000 | 0.062 [1.57] | 0.062 [1.57] | 0.26 [6.6] | 0.15 [3.8] | ||||||||||||
125AC | 1000 | 0.125 [3.18] | 0.125 [3.18] | 0.4 [10.2] | 0.22 [5.6] | ||||||||||||
125AD | 350 | 0.125 [3.18] | 0.125 [3.18] | 0.4 [10.2] | 0.22 [5.6] | ||||||||||||
125BB | 350 | 0.125 [3.18] | 0.088 [2.24] | 0.43 [10.9] | 0.22 [5.6] | ||||||||||||
125BT | 350 | 0.125 [3.18] | 0.062 [1.57] | 0.37 [9.4] | 0.16 [4.1] | ||||||||||||
125BZ | 1000 | 0.125 [3.18] | 0.062 [1.57] | 0.29 [7.4] | 0.13 [3.3] | ||||||||||||
250AE | 1000 | 0.25 [6.35] | 0.25 [6.35] | 0.57 [14.5] | 0.36 [9.1] | ||||||||||||
250AF | 350 | 0.25 [6.35] | 0.25 [6.35] | 0.57 [14.5] | 0.36 [9.1] | ||||||||||||
250BF | 1000 | 0.25 [6.35] | 0.125 [3.18] | 0.52 [13.2] | 0.22 [5.6] | ||||||||||||
250BG | 350 | 0.25 [6.35] | 0.125 [3.18] | 0.52 [13.2] | 0.22 [5.6] | ||||||||||||
250BK | 1000 , 3000 | 0.25 [6.35] | 0.175 [4.45] | 0.58 [14.7] | 0.27 [7.4] | ||||||||||||
375BG | 350 | 0.375 [9.53] | 0.187 [4.75] | 0.71 [18] | 0.29 [7.6] | ||||||||||||
500BH | 350 | 0.5 [12.70] | 0.175 [4.45] | 0.92 [23.4] | 0.3 [3.8] | ||||||||||||
500GB | 350 | 0.5 [12.70] | 0.06 [1.52] | 0.75 [19.1] | 15.00% | ||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|||||||
Linear Strain Gage - Tabs on both sides of the grid | 031EC | 350 | 0.031 [0.79] | 0.032 [0.81] | 0.17 [4.3] | 0.23 [5.8] | |||||||||||
062ED | 350 | 0.062 [1.57] | 0.062 [1.57] | 0.21 [5.3] | 0.29 [7.4] | ||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|||||||
Linear Strain Gage - Tabs on one side | 032SG | 1200 | 0.032 [0.81] | 0.032 [0.81] | 0.16 [4.1] | 0.19 [4.8] | |||||||||||
050SB | 350 | 0.05 [1.27] | 0.04 [1.02] | 0.19 [4.8] | 0.19 [4.8] | ||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|||||||
Temperature Range | |||||||||||||||||
Typically used with: | M-Bond 200 Kit | Room temperature instant curing strain gage adhesive | –25° to +150°F (–30° to + 65°C) | ||||||||||||||
M-Bond AE-10 Kit | Two-component, 100%-solids epoxy system for general purpose strain gages Room temperature cure, highly resistant to moisture and most chemicals |
–320° to +400°F (–195° to +204°C) | |||||||||||||||
M-Bond 600 Kit | Two-component, solvent-thinned, epoxy-phenolic strain gage adhesive for high-performance | –452° to +500°F (–268° to +260°C) | |||||||||||||||
EA Series Linear Strain Gages |
|||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
[in/mm] | [in/mm] | [in/mm] | [in/mm] | ||||||||||||||
Configuration | Pattern | Res. [Ω] |
Gage Length |
Gage Width |
Matrix Length |
Matrix Width |
Standard STC | Temperature Range | Options | ||||||||
Linear Strain Gage | 015DJA | 120 | 0.015 0.38] | 0.02 [0.51] | 0.23 [5.8] | 0.12 [3.0] | 00, 03, 05, 06, 09, 13 | –100° to +350°F (–75° to +175°C) | E, EL, P, W, SP11 | ||||||||
015LA | 120 | 0.015 0.38] | 0.02 [0.51] | 0.18 [0.46] | 0.1 [2.5] | ||||||||||||
031CEA | 350 | 0.031 [0.79] | 0.062 [1.57] | 0.23 [5.8] | 0.16 [4.1] | ||||||||||||
031CF | 120 | 0.031 [0.79] | 0.062 [1.57] | 0.19 [4.8] | 0.14 [3.6] | ||||||||||||
031DE | 120 , 350 | 0.031 [0.79] | 0.032 [0.81] | 0.27 [6.9] | 0.12 [0.12] | ||||||||||||
031GEA | 350 | 0.031 [0.79] | 0.062 [1.57] | 0.12 [3.1] | 0.1 [2.5] | ||||||||||||
045AL | 350 | 0.045 [1.14] | 0.045 [1.14] | 0.22 [5.6] | 0.14 [3.6] | ||||||||||||
050AH | 120 | 0.05 [1.27] | 0.04 [1.02] | 0.23 [5.8] | 0.14 [3.6] | ||||||||||||
060CD | 350 | 0.06 [1.52] | 0.1 [2.54] | 0.28 [7.1] | 0.2 [5.1] | ||||||||||||
062AK | 120 | 0.06 [1.52] | 0.062 [1.57] | 0.27 [6.9] | 0.14 [3.6] | ||||||||||||
062AP | 120 | 0.062 [1.57] | 0.062 [1.57] | 0.26 [6.6] | 0.16 [4.1] | ||||||||||||
062AQA | 350 | 0.062 [1.57] | 0.062 [1.57] | 0.26 [6.6] | 0.15 [5.8] | ||||||||||||
062DN | 350 | 0.062 [1.57] | 0.062 [1.57] | 0.34 [8.6] | 0.18 [4.6] | ||||||||||||
070LC | 350 | 0.07 [1.78 | 0.022 [0.56] | 0.24 [6.1] | 0.09 [2.3] | ||||||||||||
125AC | 350 | 0.125 [3.18] | 0.125 [3.18] | 0.4 [10.2] | 0.22 [5.6] | ||||||||||||
125AD | 120 | 0.125 [3.18] | 0.125 [3.18] | 0.4 [10.2] | 0.22 [5.6] | ||||||||||||
125BT | 120 | 0.125 [3.18] | 0.062 [1.57] | 0.37 [9.4] | 0.16 [4.1] | ||||||||||||
125BZA | 350 | 0.125 [3.18] | 0.062 [1.57] | 0.29 [7.4] | 0.13 [3.3] | ||||||||||||
250AE | 350 | 0.25 [6.35] | 0.25 [6.35] | 0.57 [14.5] | 0.36 [9.1] | ||||||||||||
250BF | 350 | 0.25 [6.35] | 0.125 [3.18] | 0.52 [13.2] | 0.22 [5.6] | ||||||||||||
250BG | 120 | 0.25 [6.35] | 0.125 [3.18] | 0.52 [13.2] | 0.22 [5.6] | ||||||||||||
250BK | 1000 | 0.25 [6.35] | 0.175 [4.45] | 0.58 14.7] | 0.27 [6.9] | ||||||||||||
500BH | 120 | 0.5 [12.70] | 0.175 [4.45] | 0.92 [23.4] | 0.3 [7.6] | ||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|||||||
Linear Strain Gage - Tabs on both sides of the grid | 015EH | 120 | 0.015 [0.38] | 0.02 [0.51] | 0.15 [3.8] | 0.19 [4.8] | |||||||||||
031EC | 120 | 0.031 [0.79] | 0.032 [0.81] | 0.17 [4.3] | 0.23 [5.8] | ||||||||||||
062EN | 350 | 0.062 [1.57] | 0.062 [1.57] | 0.23 [5.8] | 0.31 [7.9] | ||||||||||||
125ARA | 350 | 0.125 [3.18] | 0.102 [2.59] | 0.22 [5.5] | 0.37 [9.4] | ||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|||||||
Linear Strain Gage - Tabs on one side | 032SG | 120 | 0.032 [0.81] | 0.032 [0.81] | 0.16 [4.1] | 0.19 [4.8] | |||||||||||
050SB | 120 | 0.05 [1.27] | 0.04 [1.02] | 0.19 [4.8] | 0.19 [4.8] | ||||||||||||
125EP | 350 | 0.125 [3.18] | 0.125 [3.18] | 0.28 [7.1] | 0.35 [8.9] | ||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|||||||
Temperature Range | |||||||||||||||||
Typically used with: | M-Bond 200 Kit | Room temperature instant curing strain gage adhesive | –25° to +150°F (–30° to + 65°C) | ||||||||||||||
M-Bond AE-10 Kit | Two-component, 100%-solids epoxy system for general purpose strain gages Room temperature cure, highly resistant to moisture and most chemicals |
–320° to +400°F (–195° to +204°C) | |||||||||||||||
M-Bond 600 Kit | Two-component, solvent-thinned, epoxy-phenolic strain gage adhesive for high-performance | –452° to +500°F (–268° to +260°C) | |||||||||||||||
Advanced Sensors Technolgy is developing the tools of the future!
Micro-Measurements Announces Successful Integration of Advanced Sensors Technology into linear pattern strain gage sensors for Industry best-in-class design and performance characteristics. Advanced Sensors Technology applies tangible specification and manufacturing process improvements, along with industry-exclusive strain gage sensor design techniques, for direct customer benefit. The innovation behind Advanced Sensors Technology reflects many decades of Micro-Measurements R&D experience, gained across a global portfolio of thousands of successful applications, with other refinements achieved via ongoing customer feedback.

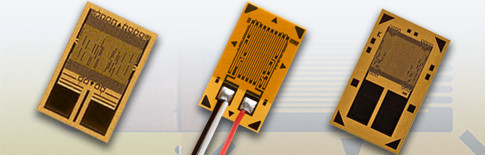

![ALT](/sites/default/files/2022-07/13007con_20e0856052b2523.jpg)

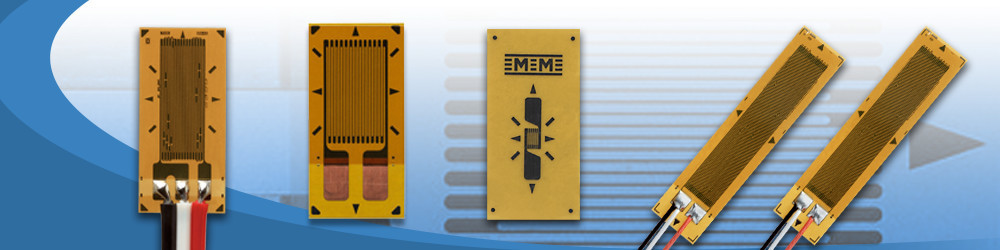

Stress Analysis Linear Pattern Strain Gages features:
- Gage patterns designed for measuring strain in a single direction
- Resistance value
- Single-grid and parallel dual-grid patterns
- Gage lengths from 0.0008" (0.20 mm) to 4.000" (101.6 mm)
- Self-Temperature Compensation (S-T-C)
- Operating temperature ranges from –452° to +750°F [–269° to +400°C]
